QuartzNET.Extend 1.0.0

Quartz.NET.Extend

Developed by Mustafa Kamal

A revolutionary Quartz.NET extension that enables inline job scheduling with full runtime management capabilities.

🚀 Technical Overview

Quartz.NET.Extend transforms job scheduling by:

• Eliminating boilerplate: No need for separate IJob implementations
• Contextual scheduling: Define jobs right where they're needed in business logic
• Runtime control: Edit or delete schedules without application restart
• Type-safe arguments: Pass complex objects directly to jobs
• DI integration: Automatic service resolution via IServiceProvider

🆚 Traditional vs Extended Approach

Traditional IJob Implementation

// Separate class required
public class ActivationReminderJob : IJob
{
    private readonly ISendEmail _emailService;

    public ActivationReminderJob(ISendEmail emailService)
    {
        _emailService = emailService;
    }

    public async Task Execute(IJobExecutionContext context)
    {
        var data = (SimpleDataStructure)context.MergedJobDataMap["args"];
        await _emailService.SendEmailAsync($"{data.Value} => {DateTime.Now}");
    }
}

// Scheduling code elsewhere
var job = JobBuilder.Create<ActivationReminderJob>()
    .UsingJobData("args", new SimpleDataStructure { Value = "Welcome message" })
    .Build();

await scheduler.ScheduleJob(job,
    TriggerBuilder.Create()
        .WithSchedule(CronScheduleBuilder.DailyAtHourAndMinute(7, 53))
        .Build());

With Quartz.NET.Extend

[Route("RegisterNewUser")]
[HttpPost]
public async Task<IActionResult> RegisterNewUser()
{
    string databaseRecordKey = 1001.ToString();

    await QuartzWrapper.addToJobs(async (sp, arg) =>
    {
        var emailService = sp.GetRequiredService<ISendEmail>();
        var data = arg as SimpleDataStructure;
        await emailService.SendEmailAsync($"{data.Value} => {DateTime.Now}");
    },
    identifier: "send reminder mail to new user for account activation",
    instanceKey: databaseRecordKey,
    codeCustomArgument: new SimpleDataStructure {
        Value = "Welcome Mustafa, please Activate your mail"
    },
    CronScheduleBuilder.DailyAtHourAndMinute(7, 53));

    return Ok(new { Message = "User registered successfully" });
}

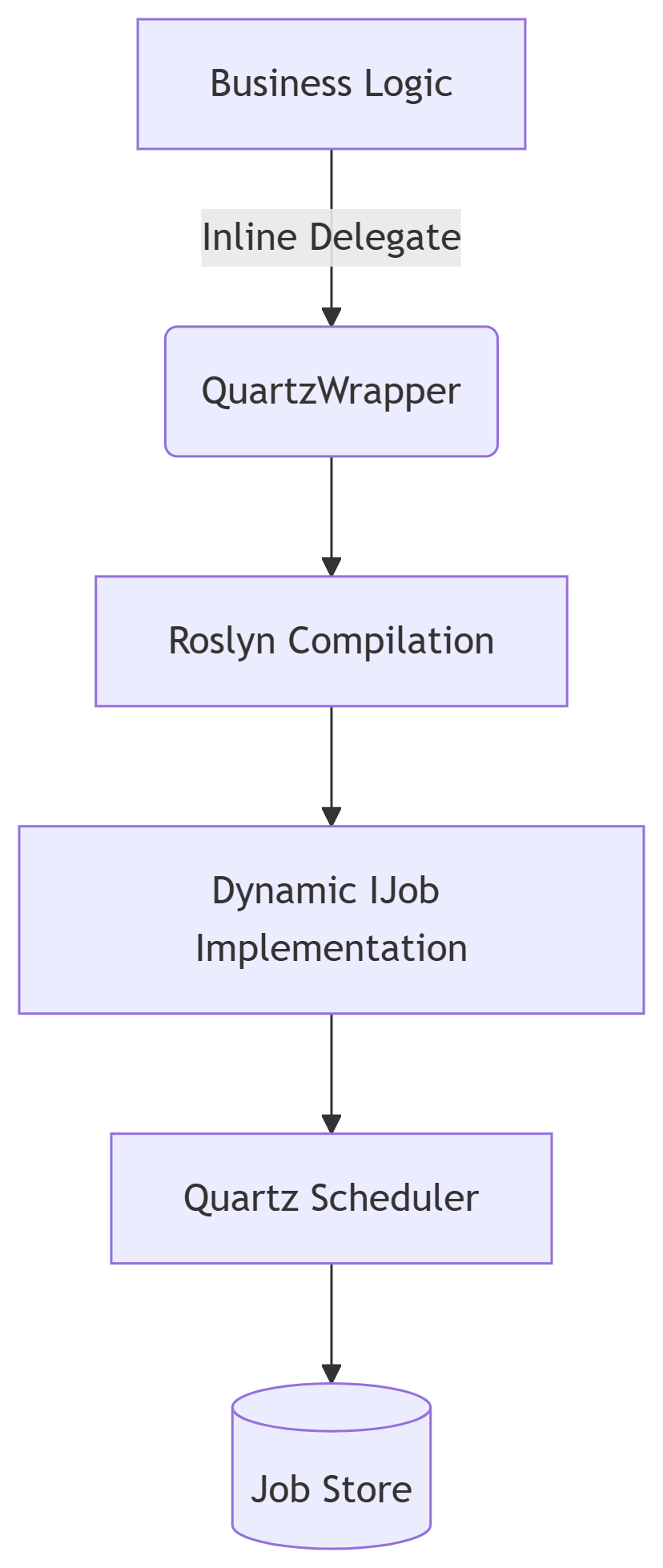

Figure 1: Inline Job Scheduling Architecture

🧠 Technical Deep Dive

Quartz.NET.Extend transforms job scheduling by:

• Runtime Code Generation: Uses Roslyn to compile lambdas into IJob implementations
• Contextual Binding: Ties jobs to business entities via instanceKey
• Type-Safe Marshaling: Serializes arguments using System.Text.Json
• Dynamic Schedule Management: Edits triggers without app restart
• DI-Aware Execution: Resolves services via IServiceProvider

📦 Installation

Prerequisite Packages

Install-Package Quartz
Install-Package Quartz.Extensions.DependencyInjection
Install-Package Quartz.Extensions.Hosting
Install-Package Quartz.Serialization.Json
Install-Package Microsoft.CodeAnalysis.Common
Install-Package Microsoft.CodeAnalysis.CSharp

Program.cs Configuration

using Quartz.NET.Extend;

// ... existing builder configuration ...

if (builder.Environment.IsDevelopment())
{
    await QuartzWrapper.RegisterCodeAsync();
}

var app = builder.Build();

app.Services.AddQuartzServices(rescheduleAlreadyActiveJobs: false);

if (app.Environment.IsDevelopment())
{
    await QuartzWrapper.RemoveAllJobsAsync();
}
else
{
    QuartzWrapper.RescheduleAlreadyActiveJobsAsync().GetAwaiter().GetResult();
}

🛠 API Reference

Job Management

// Create job with cron expression
public static async Task addToJobs(
    Func<IServiceProvider, object, Task> jobDelegate,
    string identifier,
    string instanceKey,
    object codeCustomArgument,
    string cronExpression,
    TimeSpan delay = default)

// Edit existing job
public static async Task EditJob(
    string identifier,
    string instanceKey,
    object newArgument,
    TimeSpan newInterval)

// Delete job
public static async Task DeleteJob(
    string identifier,
    string instanceKey)

🌍 Real-World Examples

E-Commerce Order Processing

[HttpPost]
public async Task PlaceOrder(Order order)
{
    await _orderService.Create(order);

    // Abandoned cart reminder
    await QuartzWrapper.addToJobs(async (sp, arg) =>
    {
        var order = arg as Order;
        var cartService = sp.GetRequiredService<ICartService>();
        if (!await cartService.IsCompleted(order.Id))
        {
            await sp.GetRequiredService<INotificationService>()
                   .SendReminder(order.UserId);
        }
    },
    identifier: "abandoned-cart-reminder",
    instanceKey: order.Id.ToString(),
    codeCustomArgument: order,
    CronScheduleBuilder.DailyAtHourAndMinute(20, 0));
}

IoT Device Monitoring

public async Task RegisterDevice(Device device)
{
    // Health check every 5 minutes
    await QuartzWrapper.addToJobs(async (sp, arg) =>
    {
        var device = arg as Device;
        var healthChecker = sp.GetRequiredService<IDeviceMonitor>();
        await healthChecker.CheckStatus(device.Id);
    },
    identifier: "device-health-check",
    instanceKey: device.MacAddress,
    codeCustomArgument: device,
    interval: TimeSpan.FromMinutes(5));
}

Newsletter System

public async Task ScheduleNewsletter(Newsletter newsletter, DateTime sendTime)
{
    await QuartzWrapper.addToJobs(async (sp, arg) =>
    {
        var newsletter = arg as Newsletter;
        await sp.GetRequiredService<IMailingService>()
               .SendBulk(newsletter);
    },
    identifier: "newsletter-delivery",
    instanceKey: newsletter.Id.ToString(),
    codeCustomArgument: newsletter,
    CronScheduleBuilder.DailyAtHourAndMinute(sendTime.Hour, sendTime.Minute));
}

📜 License

MIT © 2025 Mustafa Kamal
