CrossEscPos.Transports 1.3.2

CrossEscPos

A receipt printer emulator for testing ESC/POS, on Windows, macOS, Linux and in the browser. Built with Avalonia.

Key features • Download • Quick start • WPF to Avalonia • Docs • Live demo

Testing receipt printing usually means a real printer, a roll of paper and a lot of walking back and forth. CrossEscPos stands in for the printer: point your point-of-sale software at it over TCP, serial or USB, and each receipt prints on screen. Status queries get real answers, so you can also test how your software handles paper-out, an open cover or a cash drawer.

Avalonia Port Challenge entry. CrossEscPos is a cross-platform port of roydejong/EscPosEmulator, a Windows-only WPF app. See From WPF to Avalonia for before/after screenshots and what the migration cost.

Key features

• The connections a real printer has. TCP/IP (port 9100) and serial on the desktop; Web Serial, WebUSB and a TCP proxy in the browser.
• Real receipts. Text styles, 1D barcodes, 2D codes (QR, PDF417, DataMatrix, Aztec), bit images and page mode. See Supported commands.
• It talks back. Answers DLE EOT, GS r and Automatic Status Back. The Printer state panel simulates paper-out, an open cover, the cash drawer, offline and error states, and like real hardware the printer drops jobs while it isn't ready.
• A built-in test client. The Monitor prints sample jobs and shows the status your software would receive.
• Buzzer and cash drawer. Both signal with a sound and an on-screen toast.
• PNG export. Save every receipt in one image, or one file per cut.
• Embeddable. A headless core and NuGet packages with swappable render backends (SkiaSharp, or ImageSharp with no native dependencies).

Download

Platform	Download
	x64 (.zip)
	Apple silicon (.zip) · Intel (.zip)
	x64 (.tar.gz)

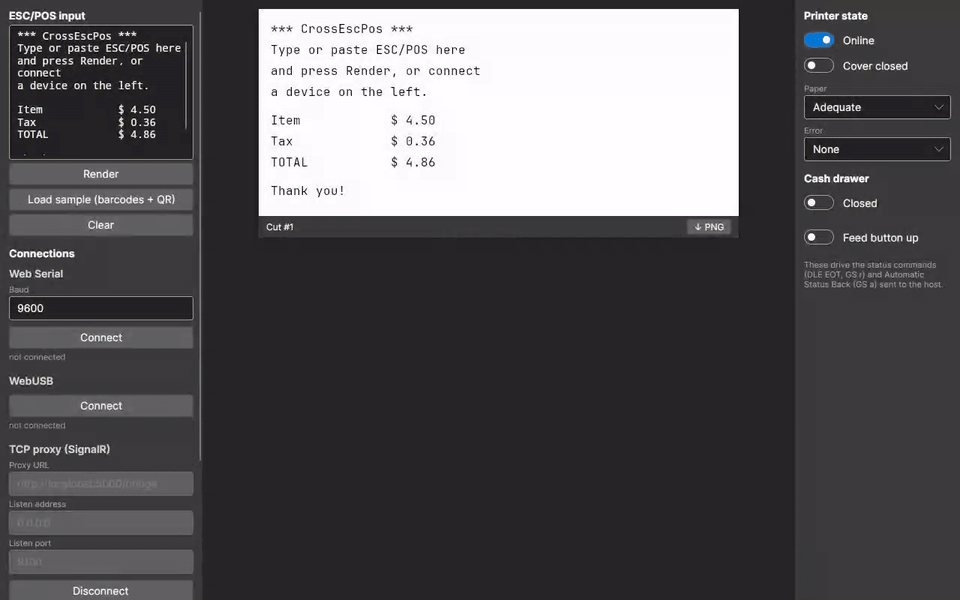

	Run it online, no install

The links download the latest release. The builds are self-contained, so you don't need .NET installed. The libraries are on NuGet as CrossEscPos.*; see Packages.

Quick start

1. Start the app. It listens on TCP port 9100 on all interfaces.

2. Send it a receipt from a terminal, or point your POS software at localhost:9100 as a network printer:

   printf 'Hello from CrossEscPos\n\n\n\035V\000' | nc -w 1 localhost 9100


3. Click Open monitor… to print sample receipts, barcodes and QR codes, and flip the switches in the Printer state panel to see the status your software would receive.

To change the port, open a serial port, or test serial without hardware, see Connecting.

To render ESC/POS from your own .NET code, start with Getting started:

var printer = new ReceiptPrinter(PaperConfiguration.Default,
    new SkiaImageFactory(), new SkiaTypefaceProvider());
printer.FeedEscPos(escPosBytes);                     // ESC/POS is binary: feed the raw bytes
using var image = printer.CurrentReceipt.Render();   // IReceiptImage
new SkiaImageEncoder().EncodePng(image, outputStream);

From WPF to Avalonia: what the migration cost

Entered in the Avalonia Port Challenge. The same write-up is on the project site, next to a live browser demo.

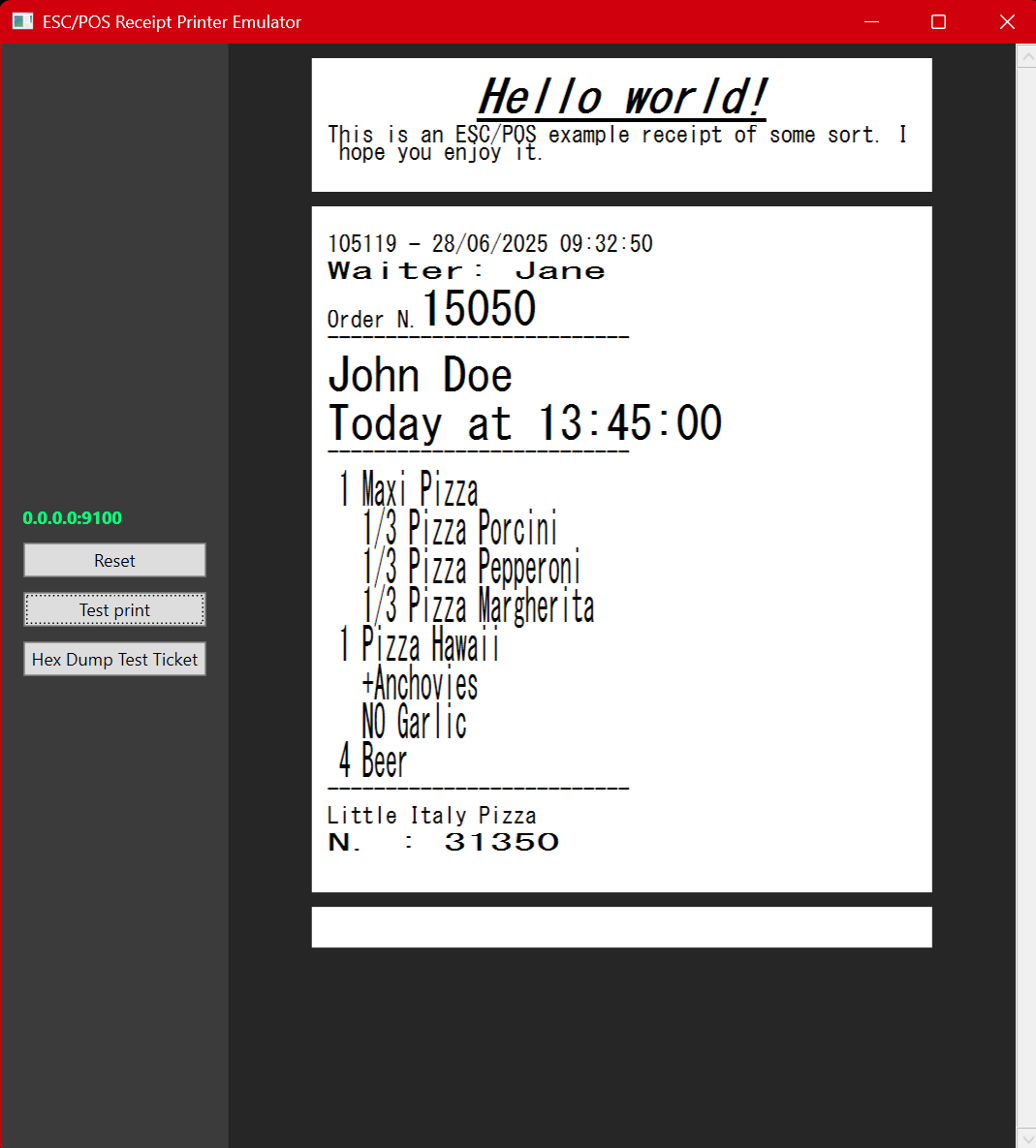

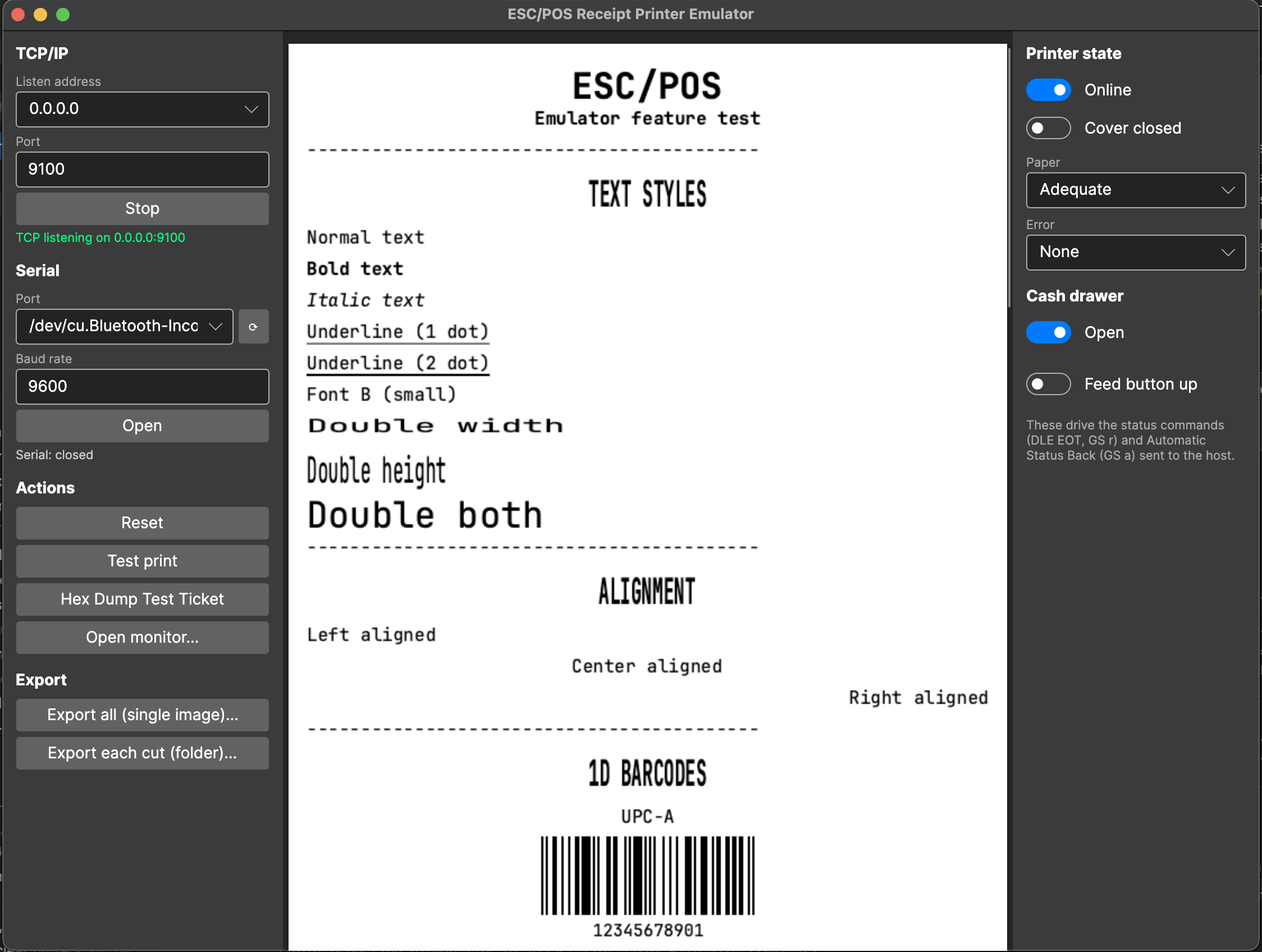

Before: WPF, Windows only	After: Avalonia 12 on macOS

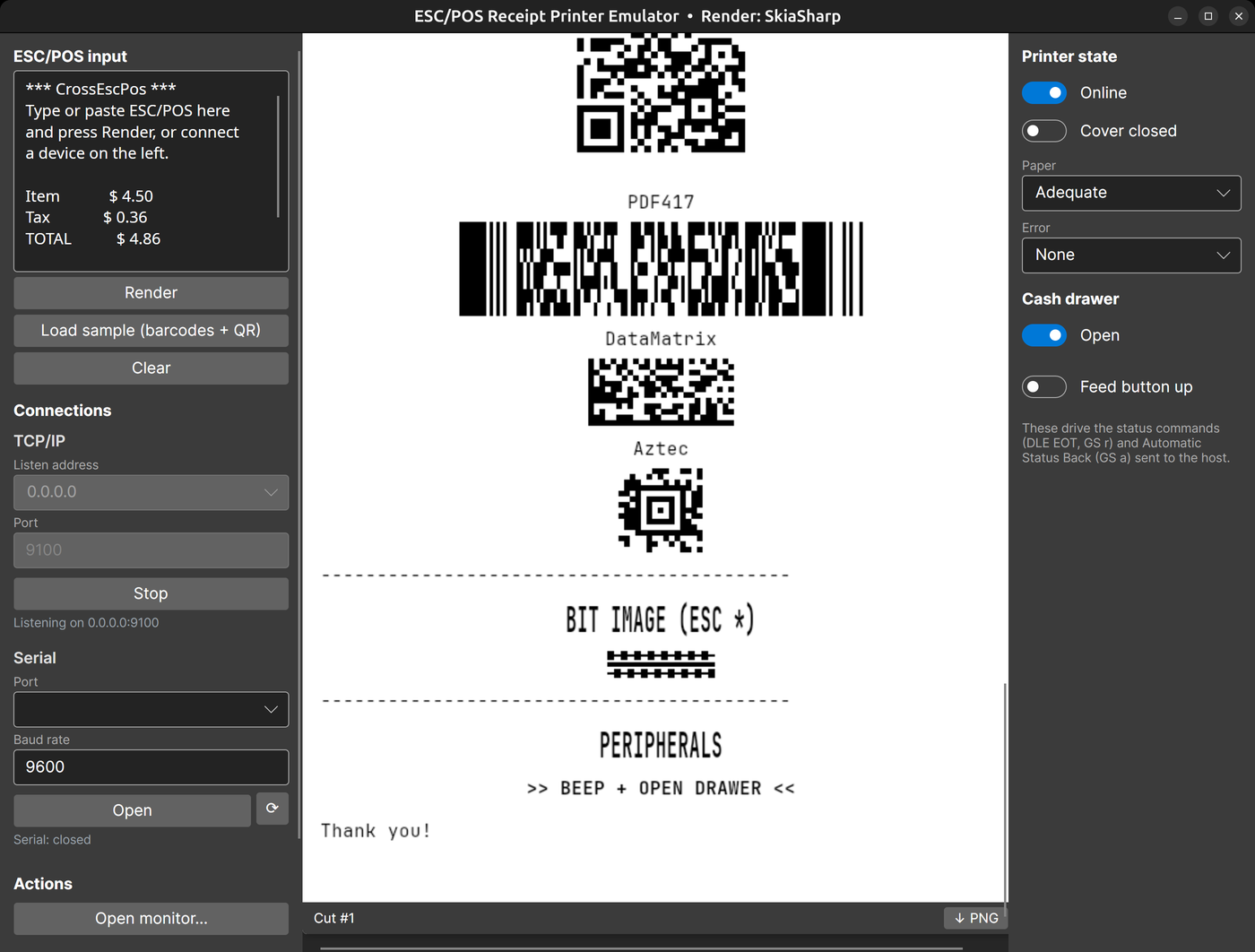

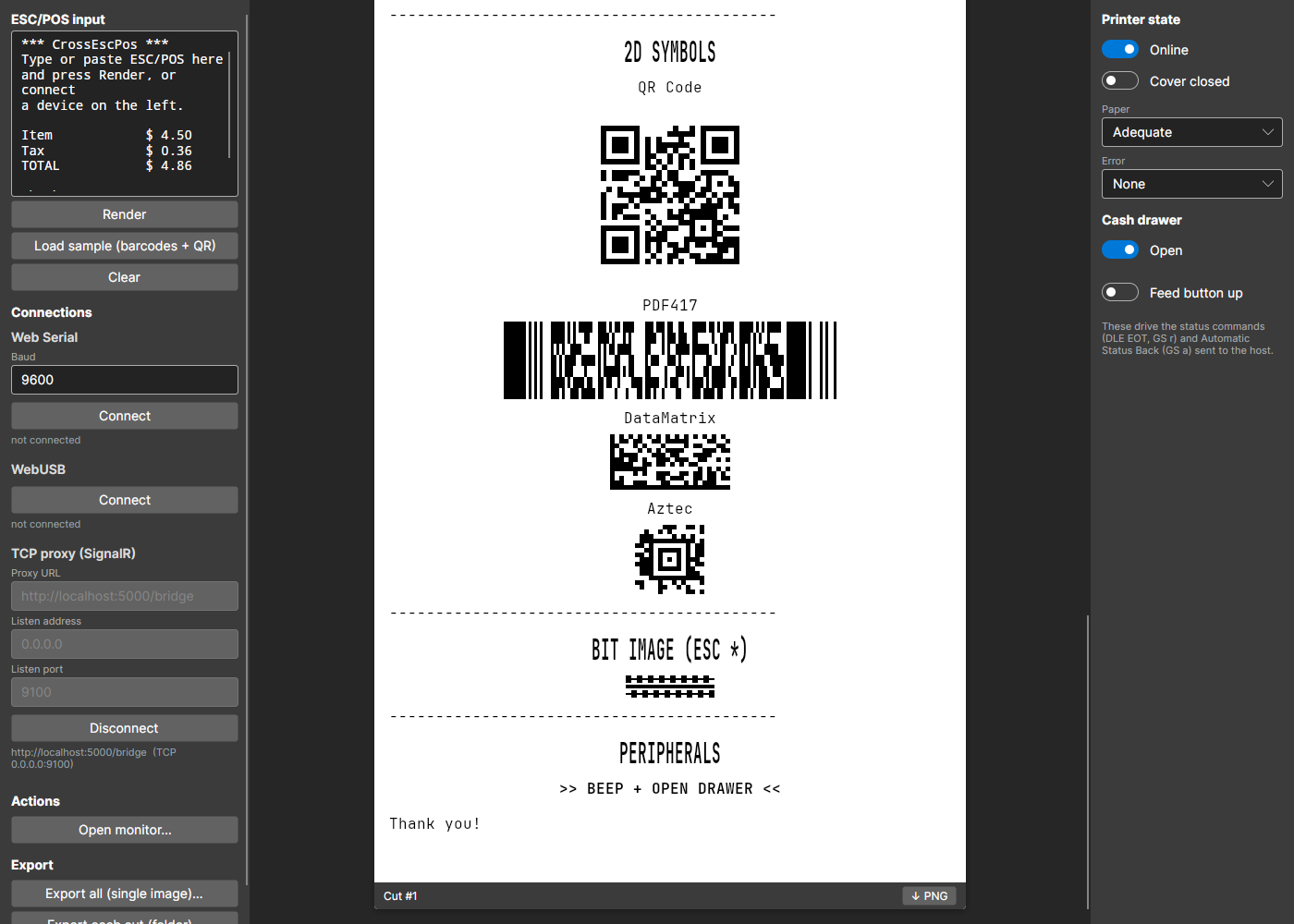

After: Linux	After: browser (WebAssembly)

Starting point

The upstream app (roydejong/EscPosEmulator, last updated July 2025) targeted net9.0-windows7.0 with UseWPF: 48 C#/XAML files, about 2,400 lines. Windows was wired in at four levels:

• Rendering. Every receipt line drew itself with GDI+ (System.Drawing.Bitmap and Graphics), which is Windows-only on .NET 6 and later. The GDI+ types were part of the core interface, IReceiptPrintable.Render(Bitmap, Graphics, int, int). To show a receipt, the window saved each bitmap into a BMP MemoryStream and loaded it back as a WPF BitmapImage.
• UI. Code-behind only. MainWindow.xaml.cs created Image controls by hand, found them again by a GUID-derived Name, and added or removed them from a StackPanel.
• OS calls. A user32!FlashWindow P/Invoke and System.Media.SystemSounds signalled new jobs.
• Assumptions. TCP was the only transport, and the test receipt was read from the current working directory.

The ESC/POS interpreter (one command class per opcode, registered in EscPosInterpreter) had no UI or Windows dependency, so its design carried over unchanged. It is now the headless CrossEscPos.Core package.

What changed, and what each part cost

The numbers

• Time: 7 days with commits over 5 weeks, per the git history. The port and desktop parity landed on June 5–6, 2026 (PRs #1–#7), the layered-package refactor on June 20–21 (#8–#10), and the browser head on July 4–7 (#11–#16).
• Size: from 48 files and ~2.4k lines to 168 files and ~10k lines of C# and AXAML, across 11 projects, 2 samples and 2 test projects. Most of the growth is new features (barcodes, 2D codes, status commands, printer-state simulation, the Monitor, serial/USB, the browser head), not port overhead. The port PR itself (#1) was +2,525 / −487 lines across 60 files.
• Tests: 131 xUnit tests (89 test methods). They run the interpreter against a synthetic render backend, which proves the core is headless, and exercise the controls with Avalonia.Headless.
• Tools: built with AI assistance (Claude Code); the commits carry Co-Authored-By trailers.

What was easy, and what hurt

• Easy: XAML to AXAML, the Fluent theme, Dispatcher.UIThread, and headless UI testing. The UI layer was the smallest part of the port.
• Hurt: removing GDI+. It was part of the core interfaces, not just the view, so the renderer had to be redesigned before anything else could move. After that came per-OS native dependencies (libusb, fontconfig on Linux, macOS signing) and the browser sandbox (no sockets, no raw file system).
• Would do again: put the drawing surface behind an interface first. Once IReceiptCanvas existed, the ImageSharp backend (a community contribution) and the browser head each landed within a few days.

Documentation

The long-form guides live in docs/ and are published as the wiki.

Troubleshooting

macOS says the app "is damaged and can't be opened"

The .app is ad-hoc signed but not notarized, so macOS quarantines it after download. Clear the quarantine flag once, then open it:

xattr -dr com.apple.quarantine /path/to/CrossEscPos.app
open /path/to/CrossEscPos.app

The app fails to start or text is missing on Linux

Install the font and rendering libraries if they're missing, for example on Debian or Ubuntu:

sudo apt install libfontconfig1 libfreetype6

Port 9100 is already in use

Pick another port in the TCP/IP panel and click Start, or start the app with ESCPOS_TCP_PORT=9200. See Connecting for all the environment variables.

The Monitor can't find libusb (direct USB printing)

USB printing needs the native libusb library: brew install libusb on macOS, or sudo apt install libusb-1.0-0 on Debian and Ubuntu. It ships with the Windows build. The operating system must not already be holding the printer.

Web Serial or WebUSB says "unsupported" in the browser

Both APIs are only available in Chromium-based browsers such as Chrome and Edge, and only on HTTPS or localhost. Receiving over TCP in the browser needs the relay host: dotnet run --project samples/CrossEscPos.Host. See Browser app.

Limitations

ESC/POS is a large command set, and CrossEscPos covers the common part of it. Not implemented yet: page-mode positioning, user-defined glyph substitution, MaxiCode and GS1 DataBar, the GS ( L graphics commands, and Katakana/CJK code pages. See Not yet implemented for the details, and expect gaps.

Contributing and support

• Found a bug, or a command that prints wrong? Open an issue. Attach the ESC/POS bytes if you can: run the app with ESCPOS_DEBUG_DUMP=1 to save them.
• Pull requests are welcome. New commands follow the BaseCommand pattern described in Adding a command. Run dotnet test CrossEscPos.slnx before you open one; warnings fail the build. See Building and testing.

Credits and license

• The original emulator is EscPosEmulator by Roy de Jong, and all credit for its design goes to him and its contributors. Thanks to @yhonc9 for the ImageSharp render backend.
• Built with .NET 10, Avalonia 12, SkiaSharp, CommunityToolkit.Mvvm, ZXing.Net, QRCoder, Ardalis.SmartEnum, System.IO.Ports, ESC-POS-.NET (the Monitor) and LibUsbDotNet (direct USB printing).
• Released under the MIT License. Receipts are rendered with JetBrains Mono under the SIL Open Font License; see Fonts and license.
